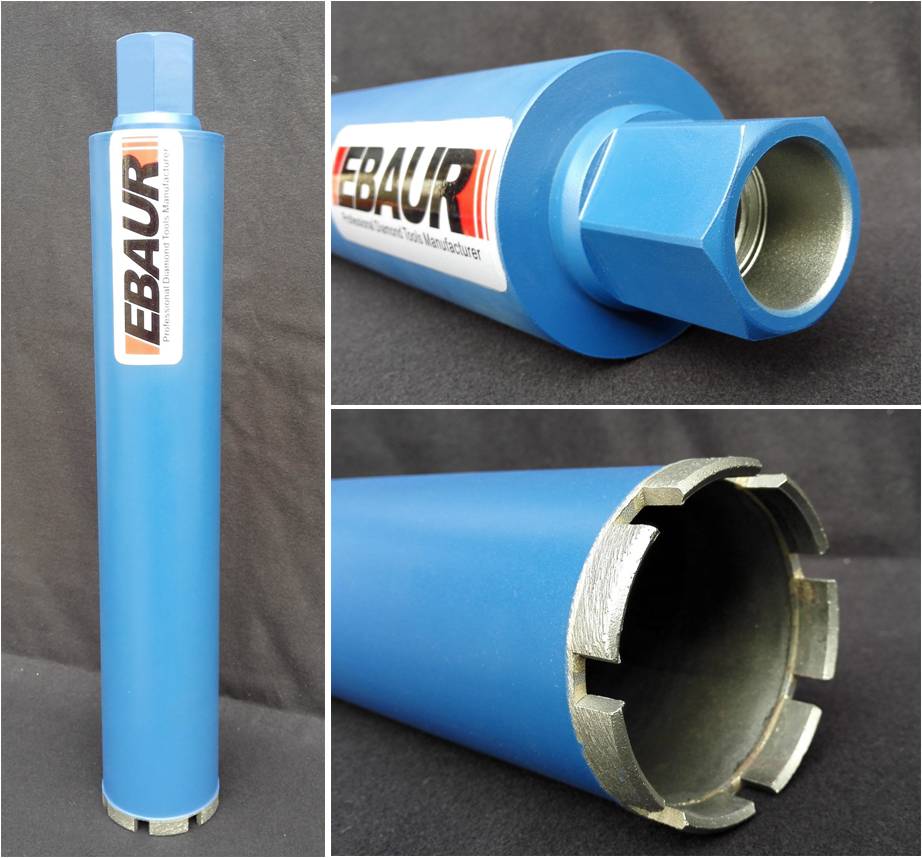

Premium Grade (Blue)
Total
Length: 450/500/550mm
Connection:
1-1/4"UNC or G 1/2"
Segment
Type: SerraTop
Series: BRAVE Premium Grade(BPG)
|
D（mm) |
D（Inch) |
Seg.Size (mm) |
Segs.QTY (pcs) |
D（mm) |
D（Inch) |
Seg.Size (mm) |
Segs.QTY (pcs) |
|
Φ18 |
3/4" |
18x3.5x10 |
2 |
Φ108 |
4-1/4" |
24x4.0x10 |
10 |
|
Φ20 |
|
20x3.5x10 |
2 |
Φ112 |
|
24x4.0x10 |
10 |
|
Φ22 |
7/8" |
20x3.5x10 |
2 |
Φ116 |
4-1/2" |
24x4.0x10 |
10 |
|
Φ25 |
1" |
20x3.5x10 |
3 |
Φ120 |
|
24x4.0x10 |
10 |
|
Φ27 |
1" |
20x3.5x10 |
3 |
Φ127 |
5" |
24x4.0x10 |
11 |
|
Φ30 |
1-1/8" |
20x3.5x10 |
3 |
Φ132 |
5-1/4" |
24x4.0x10 |
11 |
|
Φ32 |
1-1/4" |
20x3.5x10 |
4 |
Φ140 |
|
24x4.0x10 |
11 |
|
Φ36 |
1-3/8" |
20x3.5x10 |
4 |
Φ152 |
6" |
24x4.0x10 |
12 |
|
Φ38 |
1-1/2" |
20x3.5x10 |
4 |
Φ159 |
6-1/4" |
24x4.5x10 |
12 |
|
Φ40 |
1-5/8" |
20x3.5x10 |
4 |
Φ168 |
6-1/2" |
24x4.5x10 |
12 |
|
Φ44 |
1-3/4" |
20x3.5x10 |
5 |
Φ180 |
7" |
24x4.5x10 |
14 |
|
Φ46 |
|
20x3.5x10 |
5 |
Φ200 |
8" |
24x4.5x10 |
14 |
|
Φ51 |
2" |
24x3.5x10 |
5 |
Φ220 |
|
24x4.5x10 |
15 |
|
Φ56 |
2-1/4" |
24x3.5x10 |
5 |
Φ230 |
9" |
24x4.5x10 |
15 |
|
Φ63 |
2-1/2" |
24x3.5x10 |
6 |
Φ245 |
|
24x4.5x10 |
15 |
|
Φ66 |
|
24x3.5x10 |
6 |
Φ254 |
10" |
24x4.5x10 |
16 |
|
Φ71 |
2-3/4" |
24x3.5x10 |
7 |
Φ270 |
|
20x5.0x10 |
16 |
|
Φ76 |
3" |
24x3.5x10 |
7 |
Φ300 |
12" |
20x5.0x10 |
17 |
|
Φ83 |
3-1/4" |
24x3.5x10 |
7 |
Φ355 |
14" |
20x5.0x10 |
18 |
|
Φ89 |
3-1/2" |
24x3.5x10 |
8 |
Φ400 |
16" |
20x5.0x10 |
22 |
|
Φ96 |
|
24x3.5x10 |
9 |
Φ500 |
20" |
20x5.0x10 |
28 |
|
Φ102 |
4" |
24x3.5x10 |
9 |
Φ600 |
24" |
20x5.0x10 |
32 |
* The other length will be available upon request.
* Straight,
Turbo, RoofTop segment are available upon request.
* For larger
size above 600mm, please contact with us.
Feature:
1) Pure
cobalt powder bond, premium diamond crystals, vacuum hot press sintered segments.
2)
Silver-copper brazed technology ensures no loss of segments.
3) The shot
blasting and automatic painting technology brings a neat appearance and
elegance.
4)
Exceptional extension meter and fast/aggressive drilling characteristics.
Application:
1) Suit for
drilling light to moderate steel reinforcement (up to C40) i.e,mansion
building, bridge, wharf, airport and other projects.
2) Used on
all types of drill rigs,HF or hydraulic drill unit.
